CaterCow Marketplace: Menu & Offerings Data Models

Overview

This document outlines the data models that power the restaurant menus on the CaterCow marketplace. The system is designed to be highly flexible, supporting extensive customization of menu items to accommodate the diverse and complex offerings of our restaurant partners.

The primary components of this system are:

• Restaurant Menus (restaurant_menus): The top-level container for a specific menu (e.g., "Lunch Menu", "Holiday Menu").
• Menu Items (menu_items): The individual dishes or products a customer can order. These also serve as the options within a customization.
• Modifier Groups (modifier_groups): Logical collections of menu_items that can be used to customize a parent menu item (e.g., a "Choose Your Protein" group would contain menu_items like "Chicken", "Beef", and "Tofu").
• Menu Item Modifiers (menu_item_modifiers): The join table that establishes the rules for how a modifier_group applies to a parent menu_item (e.g., must choose 1, may choose up to 3).

Menus are primarily ingested into our system via a Woflow webhook. This process parses a proprietary JSON format from Woflow and translates it into the CaterCow schema detailed below. Post-ingestion, menus are managed internally by admins using a customized Jspreadsheet interface, which allows for efficient bulk editing.

Entity-Relationship Diagram (ERD)

The following diagram illustrates the relationships between the core tables in the menu system.

Model & Schema Breakdown

restaurant_menus

This is the highest-level container, representing a complete menu for a brand. A brand can have multiple menus, such as a seasonal menu, a breakfast menu, and a standard lunch menu.

Column Name	Type	Description
id	bigint	Primary Key.
brand_id	bigint	Foreign Key linking to the brands table.
name	varchar	The display name of the menu (e.g., "Main Lunch Menu").
active	boolean	A boolean flag to determine if the menu is currently live on the marketplace.
active_changed_at	datetime	Timestamp for when the active status was last changed.
menu_items_updated_at	datetime	Timestamp for the last update to any item within this menu, used for caching.
rigorously_vetted_at	datetime	Timestamp indicating if/when the menu passed a rigorous internal review.

menu_categories

Categories are used to organize menu_items within a restaurant_menu (e.g., "Appetizers", "Main Courses", "Desserts", "Drinks").

Column Name	Type	Description
id	bigint	Primary Key.
restaurant_menu_id	bigint	Foreign Key linking to the restaurant_menus table.
name	varchar	The name of the category (e.g., "Vegan Pizzas").
description	text	An optional description for the category.
hidden	boolean	A boolean flag to hide the category from the customer-facing menu.
pollable	boolean	Important for Group Ordering. If true, items in this category are eligible for group orders.

menu_items

This is the core table representing an individual, orderable item. It contains all essential information about a dish, including pricing, dietary flags, and serving details. Importantly, menu_items can also function as the selectable options within a modifier_group.

Column Name	Type	Description
id	bigint	Primary Key.
restaurant_menu_id	bigint	Foreign Key linking to the parent restaurant_menus table.
menu_category_id	bigint	Foreign Key linking to the parent menu_categories table.
name	varchar	The display name of the item.
description	text	A detailed description of the item.
price	decimal	The base price of the item.
qty_served	int	The number of people/units the item serves (e.g., a tray serving 10 people would have qty_served: 10). This is often parsed from the item name/description on import.
unit_serving	varchar	A description of the serving unit (e.g., "12 ounce can", "6 slices").
source_item_id	bigint	Foreign Key to another menu_items record. This is used for item variants. For example, "Half-Tray of Beef" and "Full Tray of Beef" would be separate menu_items, but they would both point to the "Single Serving of Beef" source_item_id as the default or base variant. This allows modifiers to be applied at different price points while still retaining the relationship among variants.
vegetarian, vegan, etc.	boolean	Boolean flags for dietary information.
modifiers_json	json	A pre-computed, denormalized JSON blob containing all associated modifier groups and their options. This field is synced every minute and persisted directly to the menu_items table. This approach is critical for performance, as it allows a fully orderable menu item to be displayed without executing complex database joins on-the-fly. It is also copied into order_items and poll_options to retain historical state and proper versioning.
from_import	boolean	A flag indicating if the item was created via the Woflow import process.

Example Menu Item:

This example shows a "Specialty 3-Foot Party Sub" which has a complex set of modifiers. The modifiers_json field contains an array of modifier groups, such as "Choice of Sandwich", with all its available options (which are other menu_items) pre-loaded.

{
  "id": 129285,
  "active": false,
  "name": "Specialty 3-Foot Party Sub",
  "description": null,
  "price": "75.0",
  "qty_served": 10,
  "unit_serving": null,
  "menu_category_id": 11061,
  "vegan": true,
  "modifiers_json": [
    {
      "id": 39089,
      "name": "Choice of Sandwich",
      "minimum_choosable_options": 1,
      "maximum_choosable_options": 1,
      "child_items": [
        { "id": 129109, "name": "The Greek", "price": "0.0", "vegetarian": true, "...": "..." },
        { "id": 129110, "name": "The Zohan", "price": "0.0", "vegan": true, "...": "..." },
        { "id": 129114, "name": "The Nothing Worse than Wasted Italian", "price": "0.0", "...": "..." }
      ]
    }
  ]
}

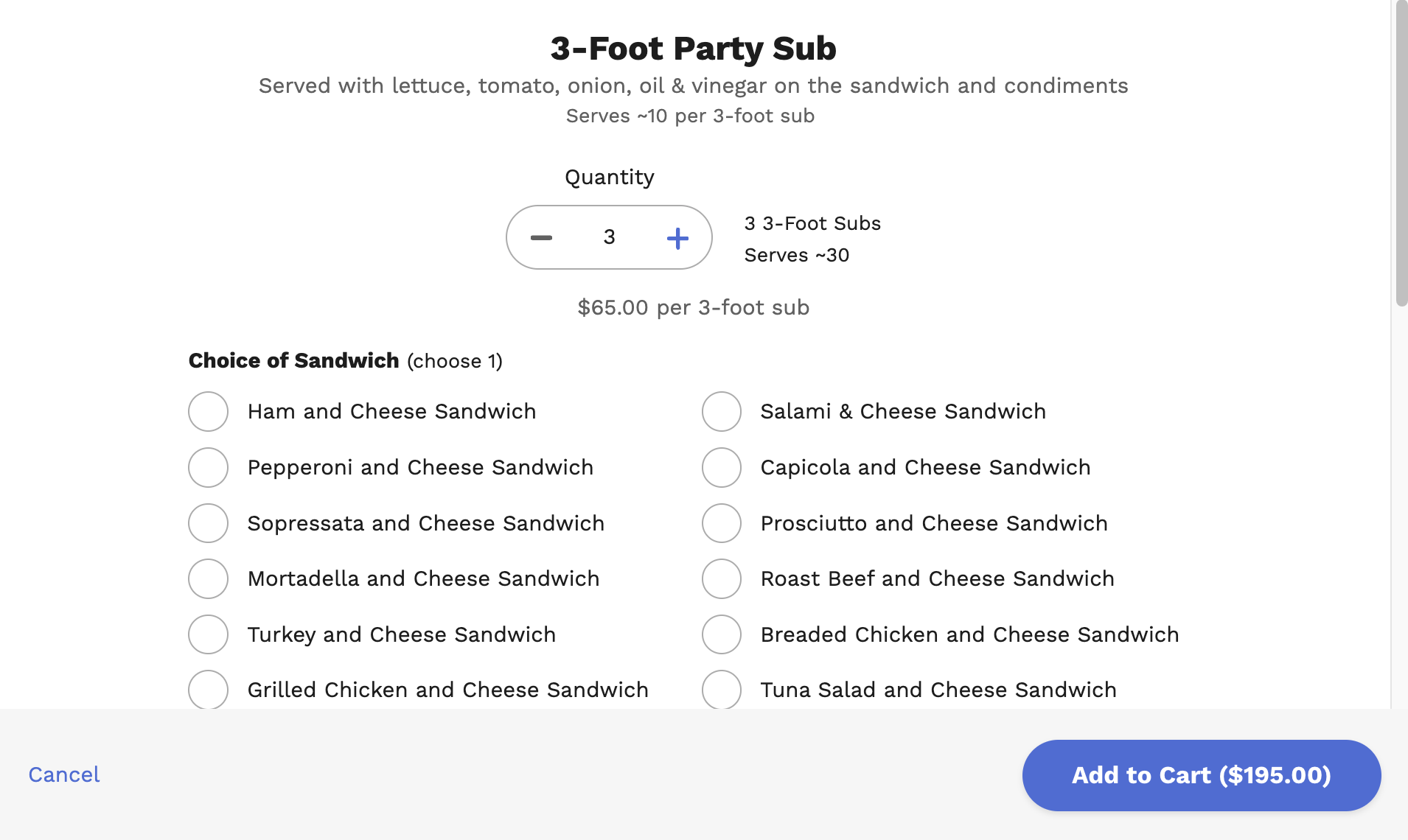

Example Menu Item

modifier_groups & menu_item_modifiers

These tables work together to handle item customizations. The options presented within a modifier_group are simply other menu_items. The menu_item_modifiers table defines the rules of engagement between the parent item and the option group. For simplicity, modifier groups are not nested (i.e., they are only one layer deep).

modifier_groups: Defines a logical grouping of choices.

• Example: A modifier group could be named "Select Your Protein" or "Choose Your Size". Its selectable options would be other menu_items, like "Grilled Chicken," "Crispy Tofu," "Small," or "Large."
• Deduplication: When importing from Woflow, the system attempts to deduplicate modifier groups that are identical across multiple items to simplify admin management.

menu_item_modifiers: This is the join table that defines the rules for how a modifier_group applies to a parent menu_item. It does not store the options themselves.

Column Name	Type	Description
id	bigint	Primary Key.
menu_item_id	bigint	The parent item being modified.
modifier_group_id	bigint	The group of modifiers this rule applies to.
minimum_choosable_options	boolean	The minimum number of options that must be selected (e.g., 1 for "Choose Your Protein").
maximum_choosable_options	boolean	The maximum number of options allowed (e.g., 3 for "Choose up to 3 toppings").
maximum_pollable_options	int	Crucial for Group Ordering. Limits the number of options from this group displayed in a group order. default options are prioritized.
duplicate_increment	boolean	If not NULL, this indicates the modifier group should be displayed as a series of steppers. The value of this field determines the step of the stepper. This avoids duplicating a modifier group multiple times (e.g., allowing a user to choose any combination of flavors for a dozen bagels).

Menu Management & Approval Workflow

Admins do not typically interact with these models via a standard form-based UI. Instead, they use a heavily customized Jspreadsheet instance. This spreadsheet-like interface allows for rapid, bulk updates to menu items, prices, dietary flags, and other fields across an entire menu without needing to save each item individually.

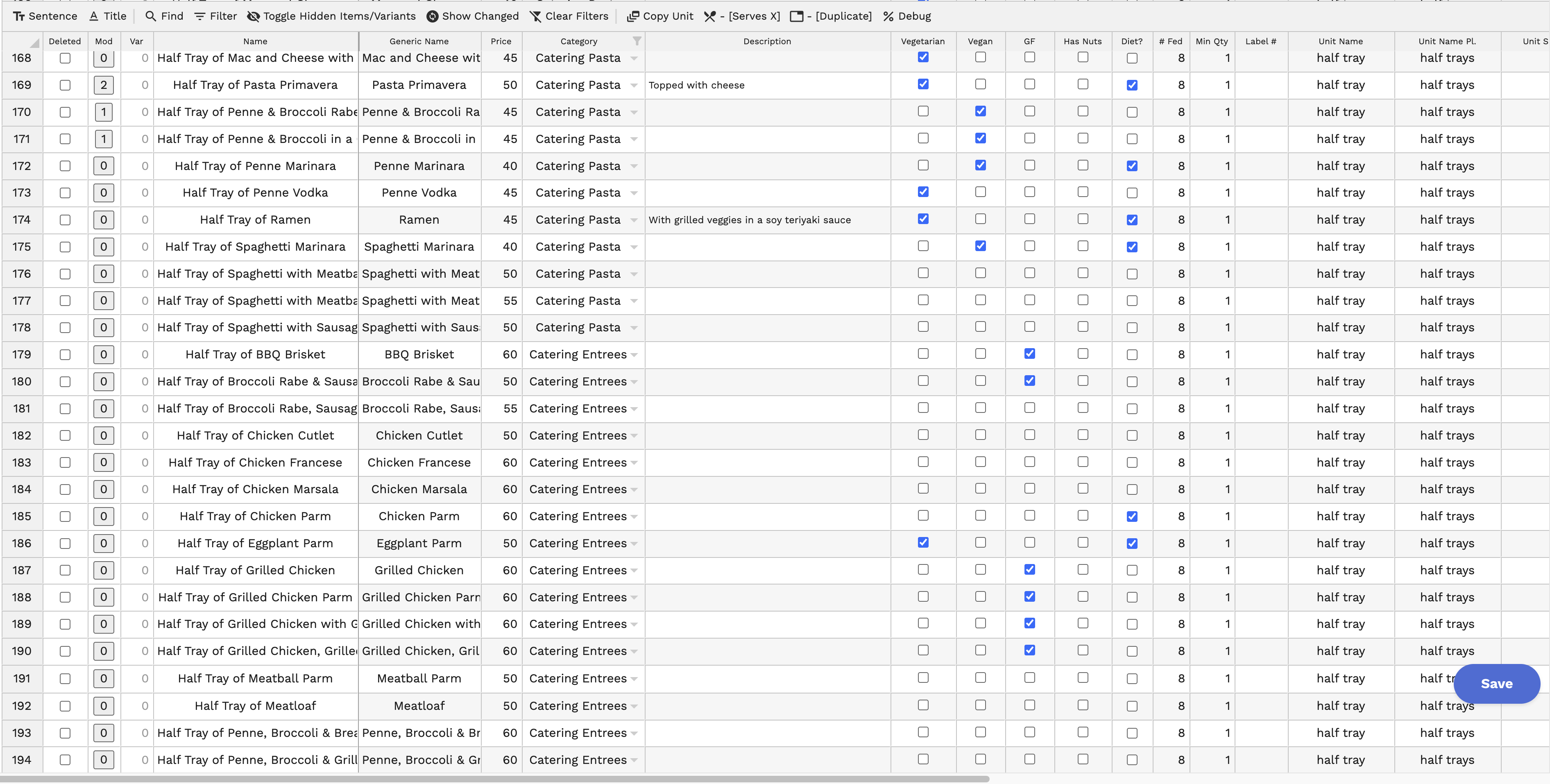

Jspreadsheet Menu Management View

Editing and Approval Process

Restaurants have the ability to edit their own menu items. However, to maintain quality and consistency on the marketplace, a manual approval process is in place for any brand that is live on the marketplace!

• Marketplace Partners: When a restaurant that is active on the marketplace makes changes to their menu, these edits are staged. They do not go live immediately. Instead, they enter an approval queue for the CaterCow team to review.
• Non-Marketplace Partners: Restaurants not yet live on the marketplace can edit their menus freely without an approval step.
• Quality Control: This approval workflow serves as a crucial quality control gate. At a certain scale, these controls may be adjusted or automated.

Group Ordering ("Polls") Functionality

A key feature of the CaterCow platform is group ordering, or "polls." This system allows an organizer to send a menu to a group and have each individual select their own meal. To keep these large, complex orders manageable for restaurant kitchens, several constraints are built into the data model.

Group Order Eligibility & Limits

1. Category Eligibility: A menu item is only "pollable" if its parent menu_category has the pollable flag set to true.
2. Brand-Level Category Limit: The brands table contains a pollable_category_limit field. This integer limits how many distinct pollable categories can be included in a single group order for that brand.
   • Purpose: Prevents an order for 80 people from including items from 10 different categories (e.g., salads, sandwiches, pizzas, pastas), which would be operationally difficult for a kitchen to prepare simultaneously.
3. Modifier-Level Option Limit: The menu_item_modifiers table has a maximum_pollable_options field. This limits how many choices are displayed for a specific modifier within a group order.
   • Example: A "Choose Your Sandwich" modifier group might have 30 different sandwich options on the main menu. For a group order, the restaurant may want to limit this to their 5 most popular options to avoid preparing dozens of unique sandwich types. The maximum_pollable_options would be set to 5.
   • Prioritization: The system prioritizes options marked as default to be included in the group order. If there are no defaults, the selection of which options to display is nondeterministic.
